One panel per unit ordered*

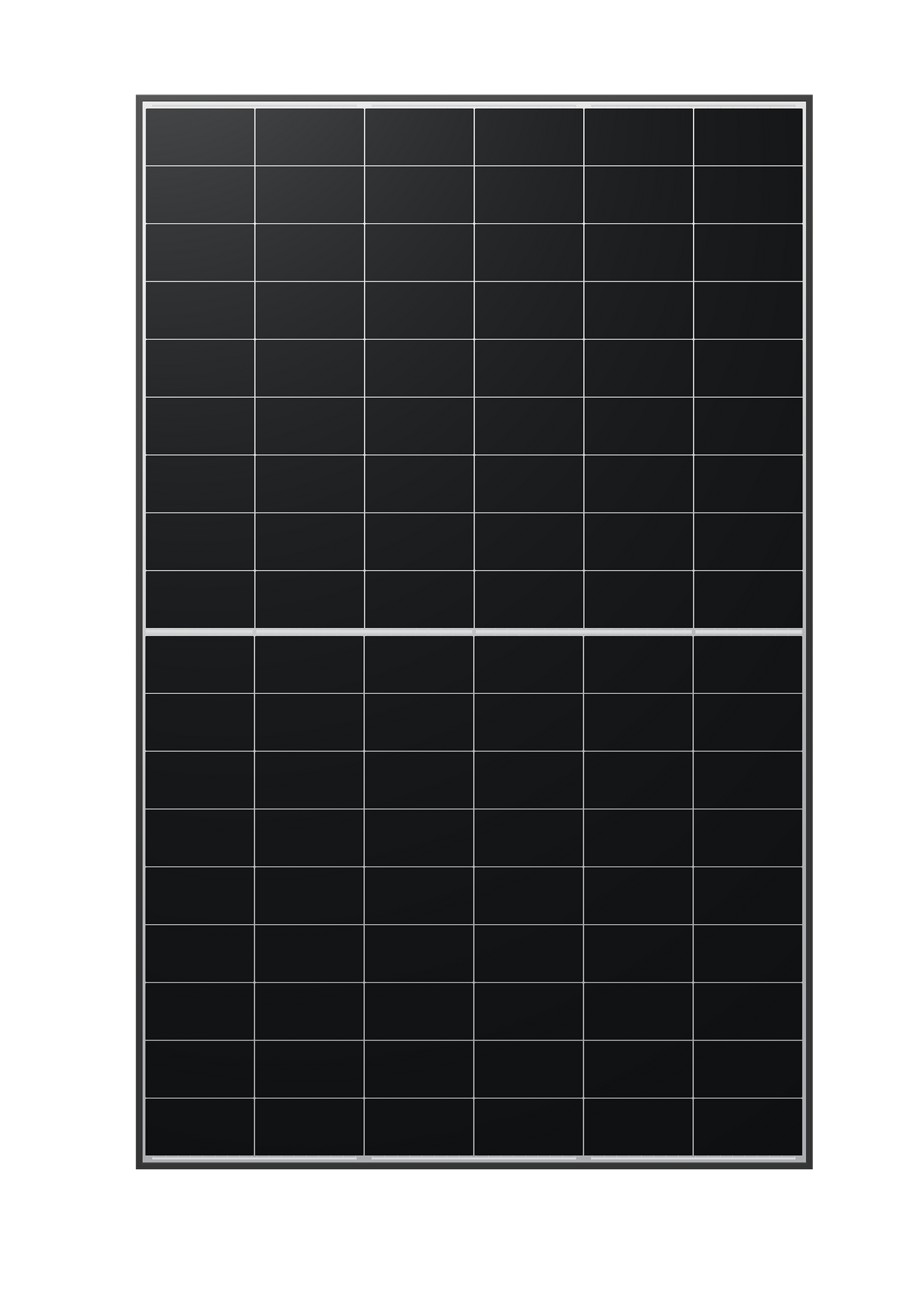

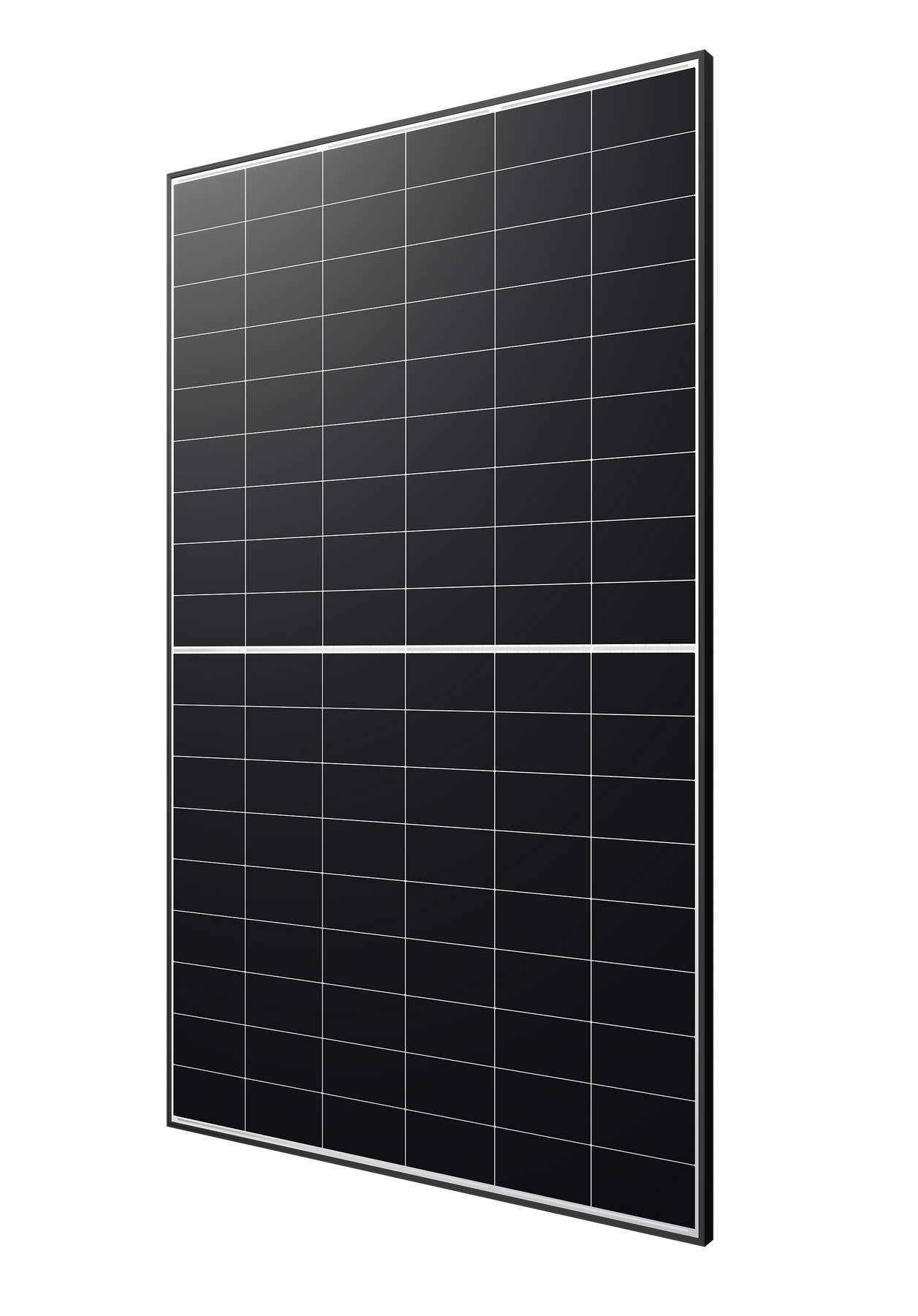

Model: LR7-54HVH 475M
First Choice for Value
Hi-MO X10 takes over the core technology of HPBC 2.0 cells, leading in power generation performance, reliability, and customer benefits, which can better meet the needs of distributed customers for products. The Hi-MO X10 includes four series—Explorer, Scientist, Guardian, and Artist, making it the first choice for value of distributed PV .
Ultimate Safety, Maximum Power Generation, Minimalist Beauty
| Bifacial | no |
|---|---|
| Connector type | MC4 Evo 2A |
| Frame colour | black |
| Length of cable plus (cm) | 120.00 |
| Max. system voltage (V) | 1500 |
| Backsheet colour cell side | white |
| Max. wind speed capacity testload(Pa) | 2400 |
| Short circuit current Isc (A) | 15.03 |
| Max. reverse current (A) | 25 |
| Glass thickness front side (mm) | 3.20 |
| Max. surface load capacity testload(Pa) | 5400 |
| Frame type | framed |
| Module structure | glass-film |
| Cell type | monocrystalline |
| Cable core cross section (mm²) | 4.00 |
| Integrated module optimization | no |
| Protection degree | IP68 |
| Temperature coefficient Uoc (%/C) | -0.2000 |
| Temperature coefficient Pmpp (%/C) | -0.2600 |
| Power tolerance | ~3% |
| Open circuit voltage Uoc (V) | 40.18 |
| Length of cable minus (cm) | 120.00 |
| Nominal current Impp (A) | 14.33 |
| Number of cells (pieces) | 108 |
| Cell cut | half cut |
| Power rating Pmax (Wp) | 475 |
| Module efficiency (%) | 23.30 |
| Temperature coefficient Isc (%/C) | 0.0500 |
