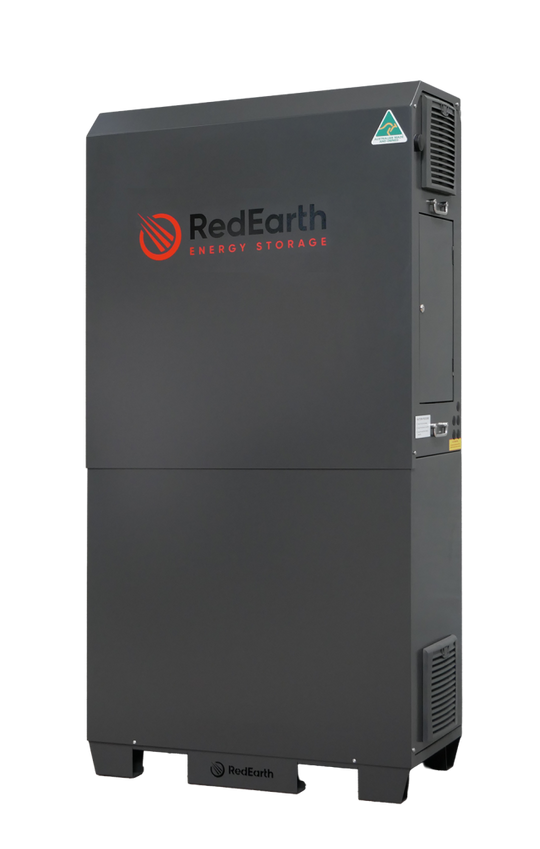

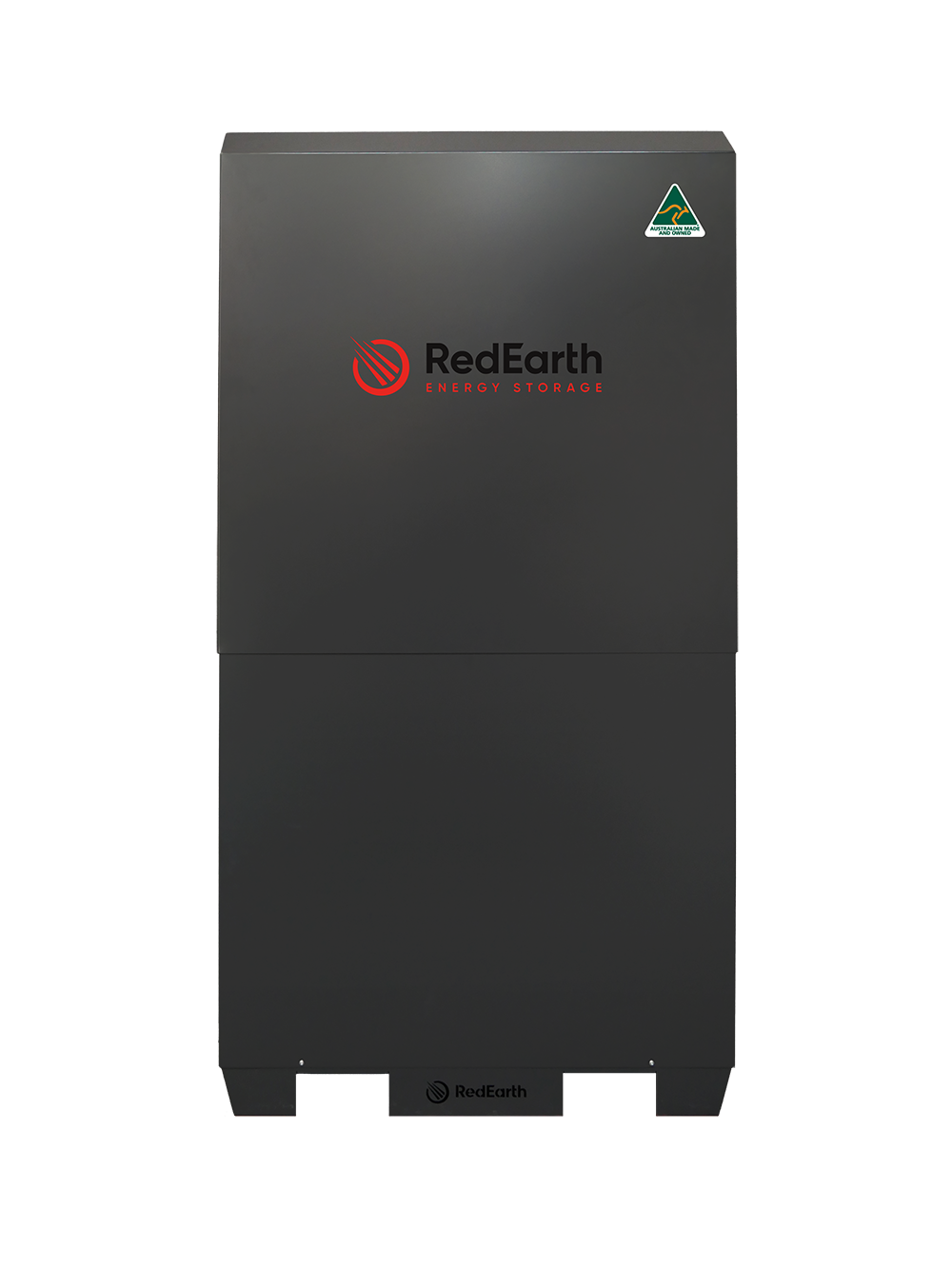

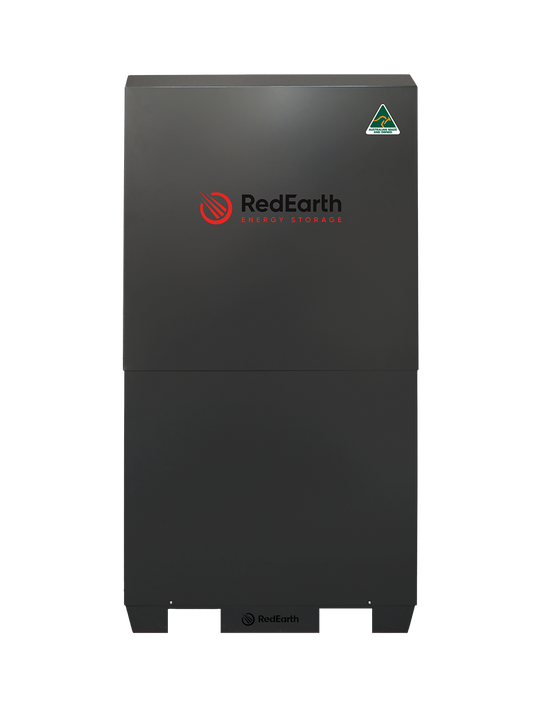

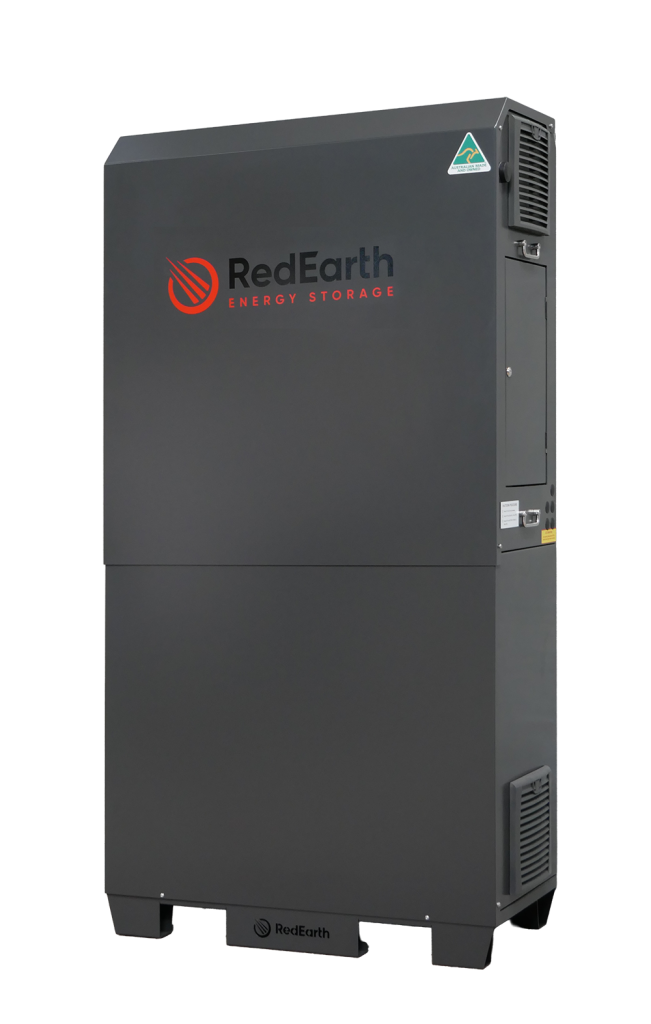

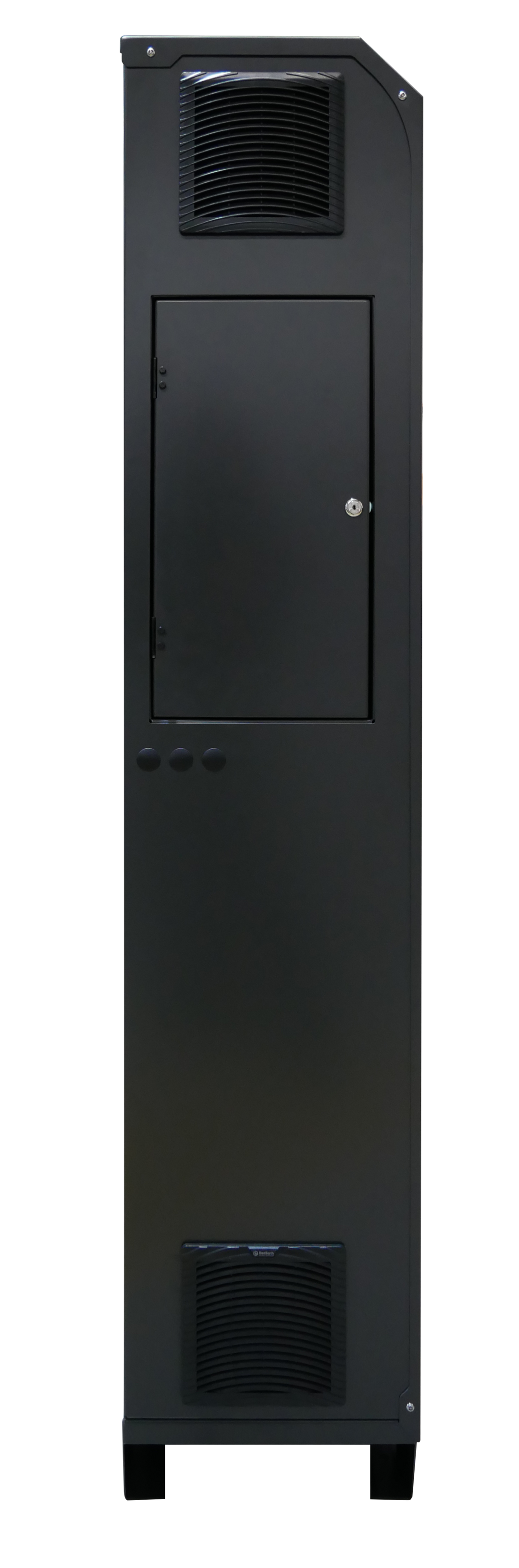

RedEarth Gecko Home Battery System
RedEarth Gecko Home Battery System
RedEarth Gecko Home Battery System

RedEarth Gecko Home Battery System

Regular price$12,500.00
/
Tax included.

Talk to an expert:

Call us: 03 8820 8133

Inverter Size
Battery Capacity

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Pricing with federal rebates applied!

  • Fits on a single pallet – fast installations!
  • Plug ‘n’ play – everything included in the box
  • EV charger and energy trading ready
  • Suitable for hybrid, on-grid and off-grid
  • Maximum capacity of 44.8kW
  • RedEarth PPP-ready - Trade your energy and more
  • Australian made and owned!!

Engineered for installers.

You asked. We listened.
Gecko has been meticulously engineered by our Brisbane team with you in mind.

Hassle-free, quick installations, with everything provided for you.

Easy from the get-go

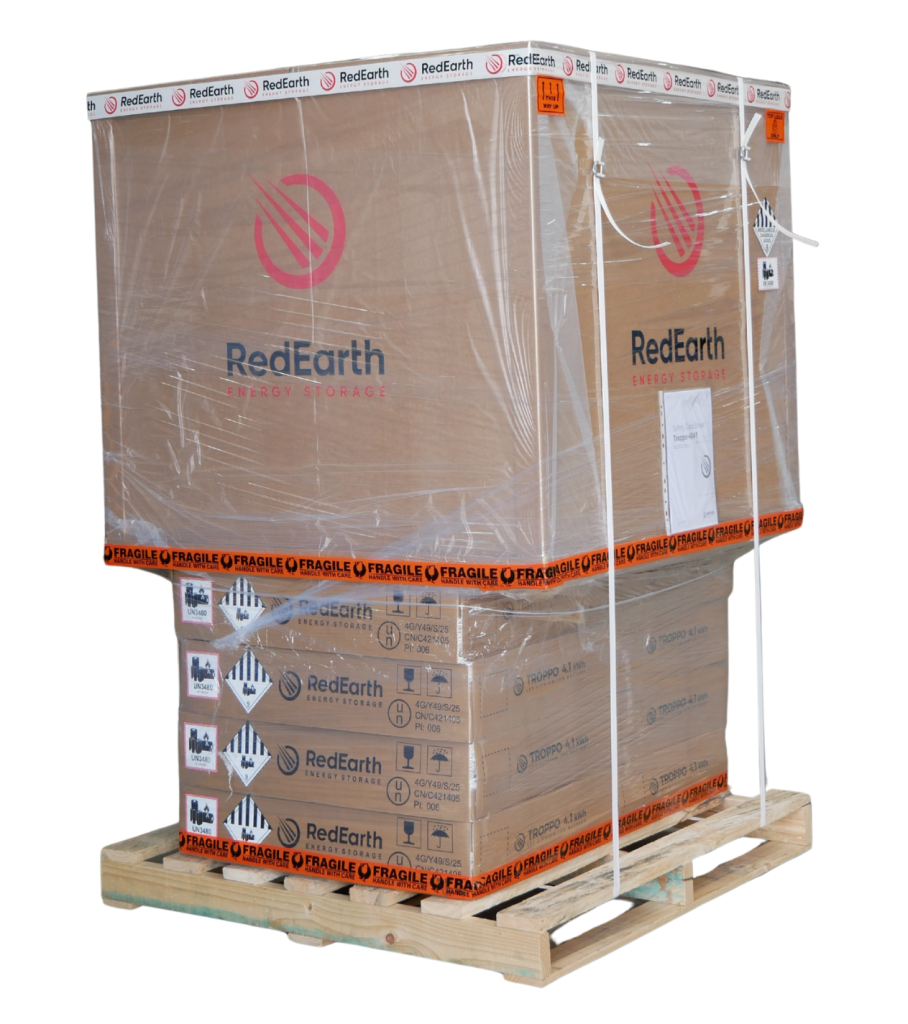

Significantly reduce install time. Packaged on a single pallet to make assembly seamless and easy.

Simple and quick assembly

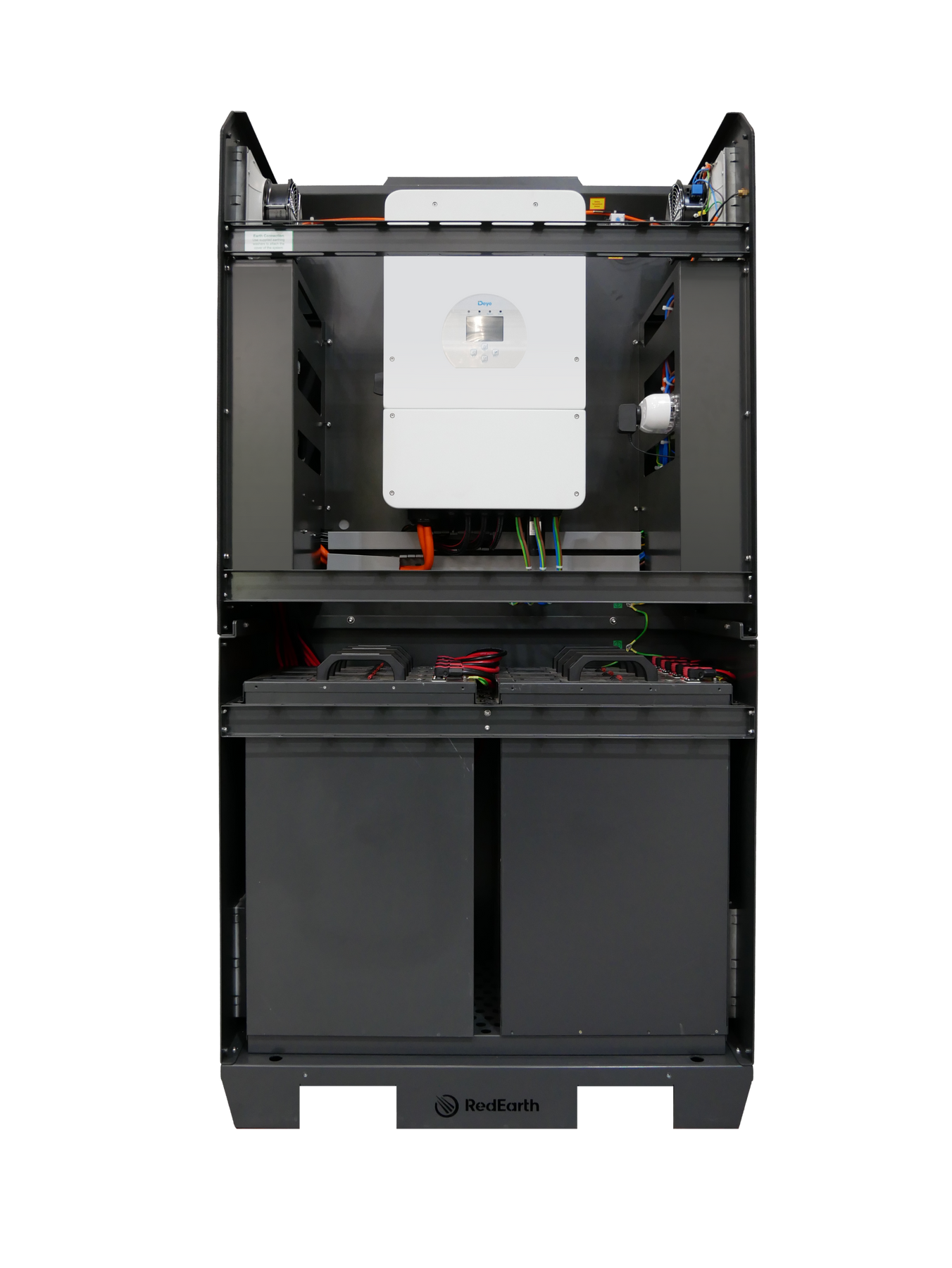

  1. Mount the battery module to the floor and wall.
  2. Attach inverter module and mount to the wall (middle box).
  3. Install up to eight Troppo batteries (remaining boxes).

All-in-one slim design.

No mess. No fuss. Plug ‘n’ play. Built in Brisbane.

Built to last. Outdoor-rated with a 10-year warranty.
Designed, engineered and assembled in Australia.
Support Australian made with RedEarth.

  • Australian made battery and battery enclosure
  • Single phase (5kW, 10kW) and three phase (12kW) options available
  • Inverter is RedEarth certified and registered

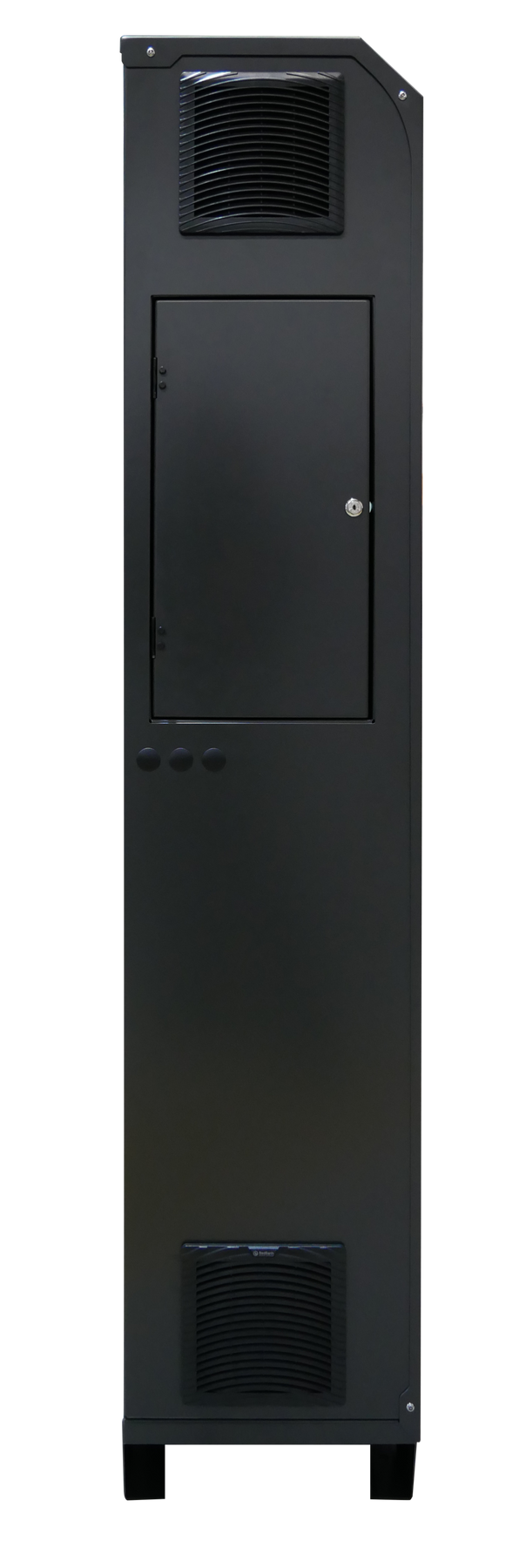

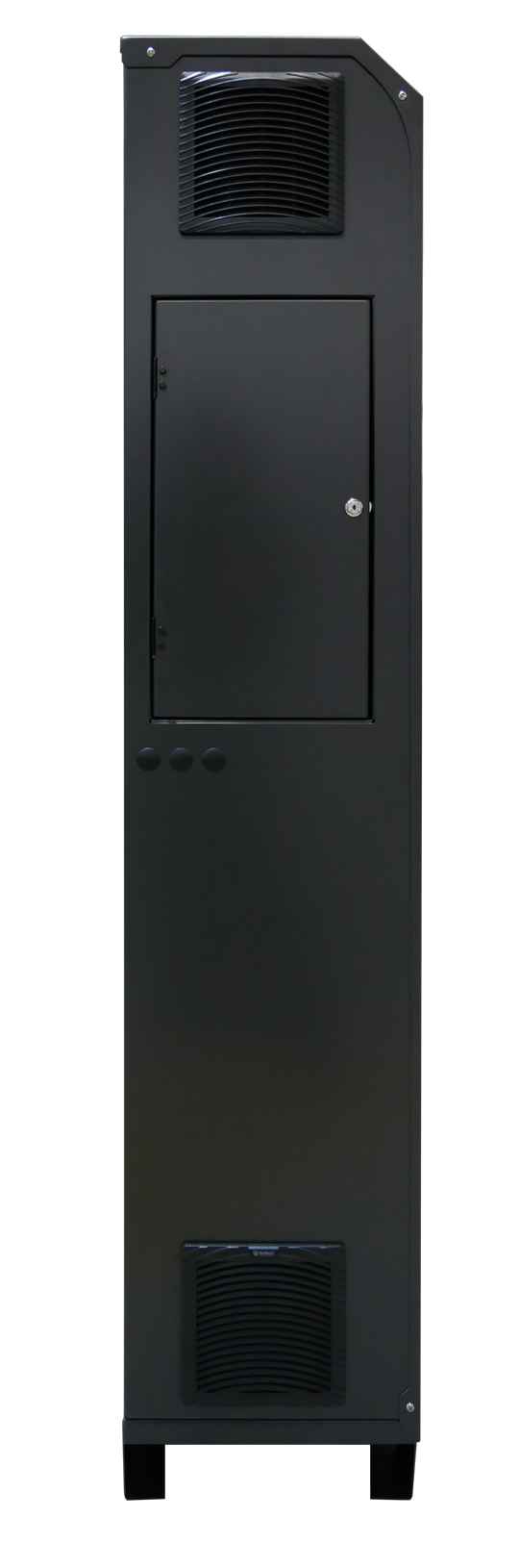

  • Slimline design, perfect for small spaces
  • EV charging compatible
  • Vehicle-to-grid compatible
  • Includes Smart Port (on-grid) to help you use electricity more efficiently
  • Private Power Plant ready: start energy trading and save money!
  • Micro inverter capable—perfect for shaded roofs or retrofitting
  • Scalable! Add more batteries as your needs change
  • System health checks: Let us monitor your system for you
  • Ongoing support. RedEarth is with you for the long haul
  • Versatile power hub seamlessly integrates grid, generator, and load ports
  • Authorised installers Australia-wide
  • Did we mention CHEAPER?!
Specification Single Phase Three Phase
Power Output Max. AC output power of 5,000W or 10,000W Max. AC output power of 12,000W or 15,000W
Solar Input 5kW option: Connect up to 10kW of solar panels to the dual MPPTs, 150–425 Vdc (max 500)
10kW option: Connect up to 20kW of solar panels to the triple MPPTs, 150–425 Vdc (max 500)
12kW option: Connect up to 24kW of solar panels to the dual MPPTs, 200–650 Vdc (max 800)
15kW option: ~Available early 2026, Connect up to 30kW of solar panels to the dual MPPTs, 160–650 Vdc (max 800)
Battery From 2 to 8 × 5.6 kWh Troppo Ultras (Max 44.8 kWh), Voltage: 48 Vdc (nom.) From 3 to 8 × 5.6 kWh Troppo Ultras (Max 44.8 kWh), Voltage: 48 Vdc (nom.)
Electrical Connections Hard-wired via built-in EPS transfer switch. PV cables connected directly to pre-installed MC4s. In-built support for controlling AC coupled microinverters and solar systems, generators, or smart loads via hard-wired terminal block.
Monitoring Monitoring hardware included and activated via RedEarth EMU app (subject to network availability and Optimum subscription). Same as Single Phase
Energy Trading On-grid only Same as Single Phase
EV Charging Yes Same as Single Phase
Weight (excl. batteries) 5kW: 115 kg
10kW: 135 kg
12kW: 140 kg
15kW: 150 kg
