Datasheet
An Evolution In Hot Water.

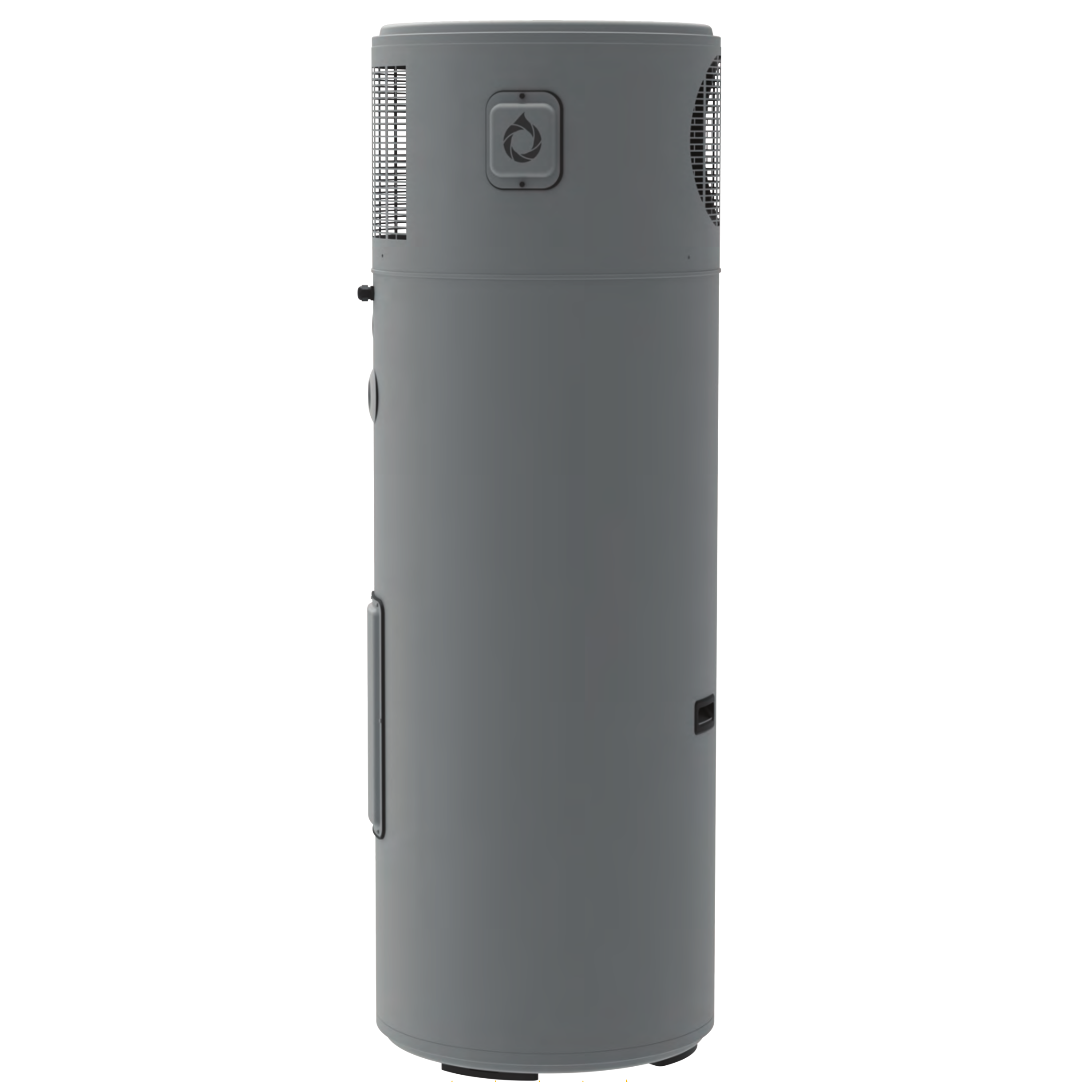

A high-capacity heat pump for large hot water demands. In a compact design that is practical to install in a variety of homes.
Hot Water For The Whole Family
With a unique design for quick recovery, the RAPID/X6 heats up more frequently and faster, delivering hot water reliably when you need it the most.
42 minutes
When fully heated the RAPID/X6 can provide 42 minutes of continuous showering, for a standard 9L/min shower head and 15°C cold water temperature.
3 hours
Even if you use all the available hot water, the RAPID/X6 high heating capacity can recover the full tank back to temperature in under three hours, on a mild day.
6 Person
The RAPID/X6 has been rated Large Load capable to Australian Standard AS/NZS 4234. That's enough hot water capacity for a six-person home.
Clever Design
The RAPID/X6 can be installed in the same location as a standard 250L storage heater with dual-handled plumbing connections, making it a quicker, simpler, and more cost-effective option for replacing existing hot water systems.
Compact
The RAPID/X6 compact size resolves the height issues traditionally associated with integrated heat pumps, making it suitable to install in a wider variety of locations.
Dual Inlets
The RAPID/X6 can be left-hand, or right-hand plumbed and can typically be fitted in a like-for-like location. Providing quicker, simpler, cost-effective installations when replacing existing hot water systems.
Plug & Play
The RAPID/X6 runs on a standard 10AMP circuit compared to 15/20AMPs required by other hot water systems and can be plugged into an outdoor power point, saving hundreds in electrical costs associated with upgrading or installing new wiring.
Five Heating Modes
Easily customise the heating output to suit the needs of every home with LCD controls & five preset modes.
Solar Compatiable
Built-in timers make it simple to power our heat pumps on home Solar PV reducing the running costs even further.
WI-FI Integration
WiFi is enabled via the smart-home app, which can be controlled and monitored from phones or tablets.
Rebates Rewards
Federal and State governments are currently offering generous rebates to encourage the uptake of heat pumps. Aquatech partners can assist in converting your entitlements into cash payments or purchase discounts worth thousands. So, there has never been a better time to make the switch & save. Check your rebate entitlements using the calculator.
Dimensions
Height: 1580mm
Diameter: 620mm
Weight: 105Kg
Volumes
Tank Storage: 225L
Heated Volume : 220L
Above Element: 150L
Plumbing
Connections: 3/4”G
PTR Rating: 850kPa
ECV Rating: 700kPa
Electrical
Supply: 220-240 V
Circuit: 10 Amp
Compressor: 900W
Element: 1800W
