(EHPA300VM) (EHPA340VM)
Available Rebates:
- VEECs -$480.00
- STCs -$500.00
-
Solar Victoria (Aus Made +$400) -$1,400.00
Proudly designed and built in Australia

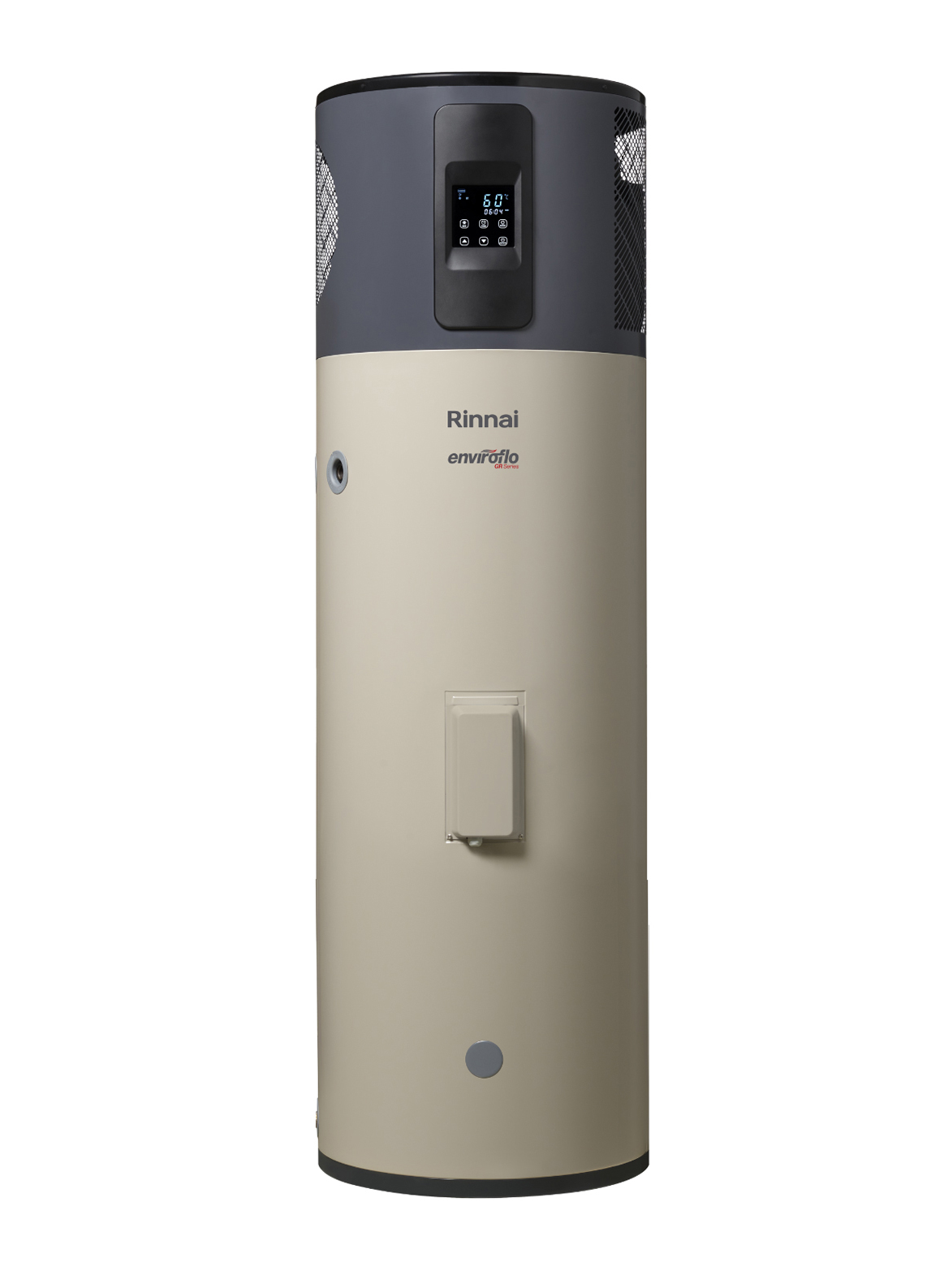

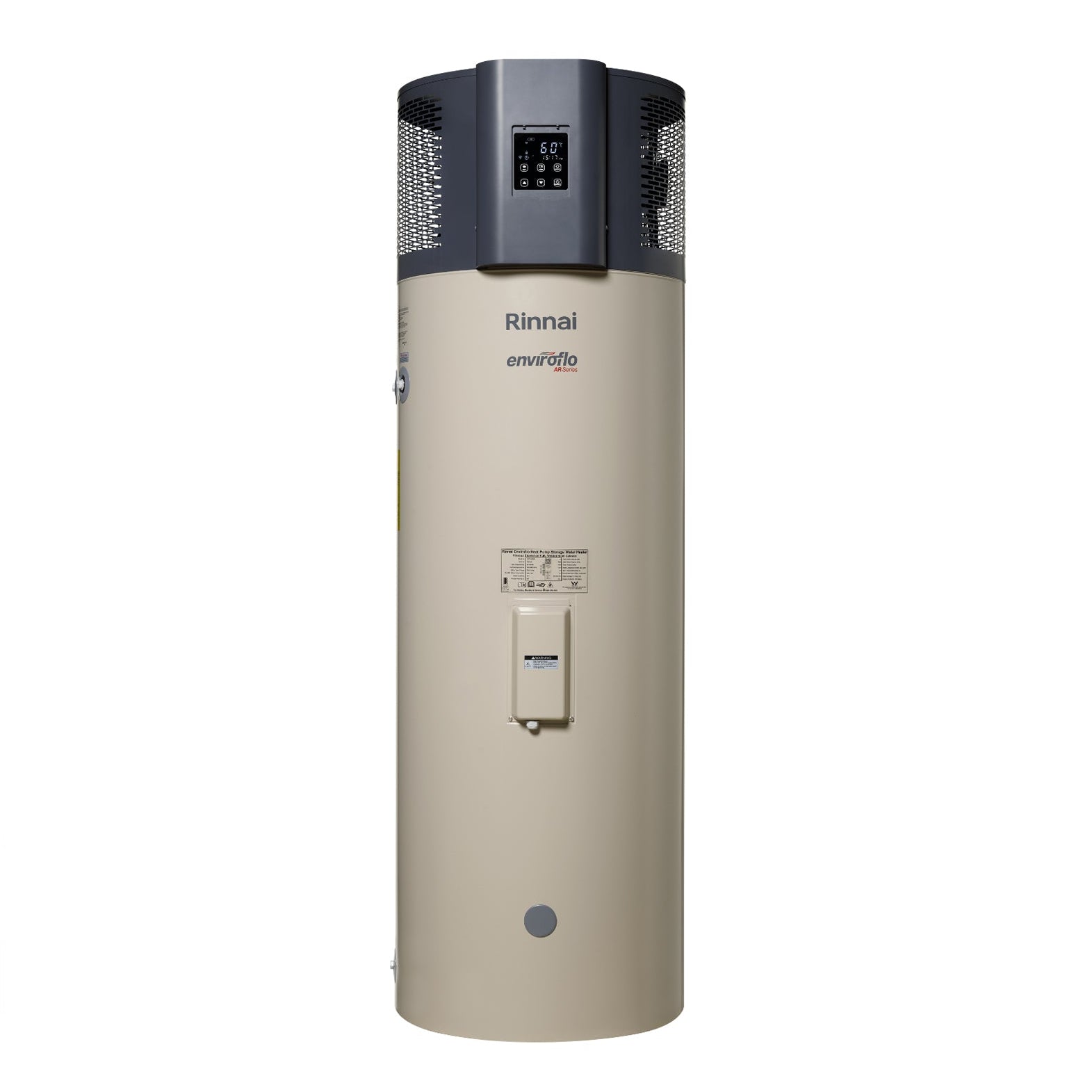

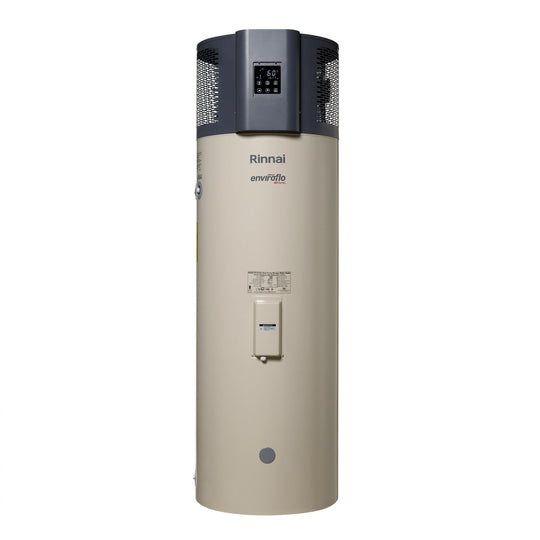

The Enviroflo AR Series electric integrated heat pump hot water system is your go-to solution for dependable and efficient hot water.
Offered in two large capacities, 300L and 340L (the largest capacity for an integrated residential heat pump in Australia), and available with standard or hard water anodes, these systems will meet any site requirements.
Enjoy the benefits of the single element boost feature, guaranteeing hot water availability even during peak usage or cold weather.
The Enviroflo AR Series is an environmentally stable choice, utilising R290, a sustainable refrigerant, and featuring Solar PV Panel compatibility that allows you to harness solar energy for enhanced efficiency and savings. Built to endure Australia’s tough climate, these systems can handle water pressures up to 1000kPa, ensuring long-lasting performance.
Their lightweight design also facilitates quick and safe installation, providing you with hot water with minimal hassle and environmental impact.
- Ideal for up to 7 people (depending on unit size)
- Australian designed and made
- Large capacities at 300L and 340L
- Largest integrated residential heat pump in Australia
- Quiet operation at a low 45dB(A)
- Built in Wi-Fi for control via SmartLife App+
- High efficiency R290 refrigerant
- Federal / State Government Grants available
- 7 year cylinder warranty*
Energy Efficient
- Innovative controller to maximise hot water availability while using more than 70% less energy**
- High efficiency R290*** refrigerant with a low Global Warming Potential (GWP) of just 0.02
- Can be networked with Solar PV Panels for enhanced efficiency and savings
- Option to run only at off-peak times, when the electricity cost is lower
Superior Technology
- Multiple operating modes - Standard | ECO | Hybrid | Electric | Vacation
- Standard and hard water anode options available
- Quiet operation levels at 45dB(A)#
- Operates in ambient air conditions ranging from -7°C to 45°C
- Built in anti-frost function to protect the evaporator in colder climates
- Inbuilt electric element to ensure you always have a reliable supply of hot water
- Auto disinfection preventing the potential growth of legionella
- Higher compressor performance improves water heat up time
- Auto restart function - in the event of a power outage it will automatically restart once the power is re-instated
- The built in Wi-Fi module via the SmartLife App+ allows for convenient control from anywhere (App available from the apple store or google play)
Rinnai Quality
- 7 year cylinder warranty*
Specifications:
| Specification | Unit | EHPA300VM / EHPA300VMH | EHPA340VM / EHPA340VMH |
|---|---|---|---|
| Tank Volume | L | 300 | 340 |
| Number of People | up to 6 | up to 7 | |
| Height | mm | 1925 | 2095 |
| Diameter | mm | 652 | 652 |
| Package Size (H × W × D) | mm | 2136 × 713 × 713 | 2306 × 713 × 713 |
| Hot Outlet | mm | 1259 | 1429 |
| Cold Inlet | mm | 116 | 116 |
| Weight (Empty / Filled) | kg | 128 / 428 | 138 / 478 |
| Sound Pressure Level | dB(A) | 45 | 45 |
| Ambient Temperature Limits | °C | -7 to 45 | -7 to 45 |
| Ingress Protection | IP24 | IP24 | |
| Hot Outlet / Cold Inlet Connection | RP | ISO 7.1 ¾” | ISO 7.1 ¾” |
| PTR Valve Connection | ISO 7.1 ½” | ISO 7.1 ½” | |
| PTR Valve Settings / Ratings | kPa / kW | 1000 / 10 | 1000 / 10 |
| ECV Fitted – Fit PLV if mains pressure exceeds | kPa | 680 | 680 |
| Recommended PLV Pressure Rating | kPa | 500 | 500 |
| ECV Not Fitted – Fit PLV if mains pressure exceeds | kPa | 800 | 800 |
| Recommended PLV Pressure Rating | kPa | 500 | 500 |
| Refrigerant Type / Mass | R / g | 290 / 380 | 290 / 380 |
| Electric Element Input | kW | 2.4 | 2.4 |
| Refrigeration Module Input | kW | 1.2 | 1.2 |
| Total Rated Input | kW | 3.4 | 3.4 |
| Maximum Energy Output | kW | 7.5 | 7.5 |
| Power Supply | V AC / Hz | 220–240 / 50 | 220–240 / 50 |
| Maximum Rated Current | Amps | 15 | 15 |
| Refrigerant Circuit Pressure | kPa | 3000 | 3000 |
| Coefficient Of Performance (COP) | kW | 8.4 | 8.4 |
| Heat Output | kW | 4.4 | 4.4 |
Warranty*
| Type of Use | Coverage | Cylinder** | Refrigeration Components¹ | Other Components² |
|---|---|---|---|---|
| Domestic Use | Parts | 7 years | 5 years | 1 year |
| Domestic Use | Labour | 5 years | 5 years | 1 year |
| Commercial Use | Parts | 1 year | 1 year | 1 year |
| Commercial Use | Labour | 1 year | 1 year | 1 year |
