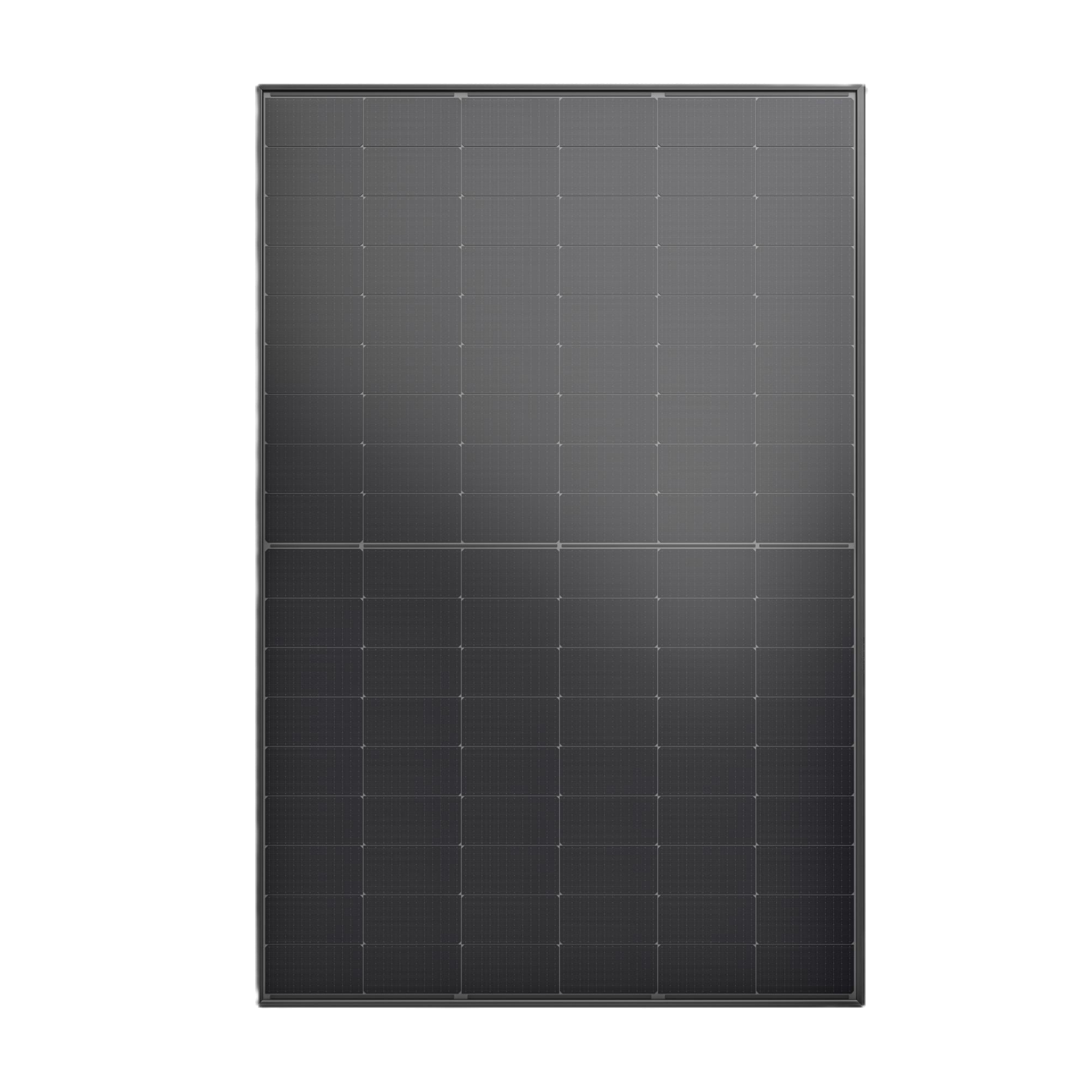

The Jinko Tiger Neo 510W (JKM510N-60HL4-V) is a high-performance N-Type monofacial solar panel engineered for maximum efficiency, long-term durability, and premium aesthetics. Featuring TOPCon cell technology, Jinko's advanced HOT 3.0 platform, and a sleek 30mm black frame, this panel is ideal for high-output residential, commercial, and industrial solar installations.
With up to 23.83% module efficiency, enhanced mechanical strength, and low annual degradation, the Tiger Neo 510W delivers outstanding energy yield and value across its 30-year performance life.
Technical Specifications
- Model: JKM510N-60HL4-V
- Rated Output: 510W
- Module Efficiency: Up to 23.83%
- Cell Type: N-Type TOPCon, 120 half-cut monocrystalline cells
- Technology Platform: HOT 3.0
- Panel Type: Monofacial, single-glass (3.2mm)
- Frame: 30mm black anodised aluminium
- Dimensions: 1906 × 1134 × 30 mm
- Weight: 22.5 kg
- Junction Box: IP68 rated
- Connectors: Genuine MC4-EVO 2
- Temperature Coefficient: ~[Can be added if needed]
- Product Warranty: 25 years
- Performance Warranty: 30 years
- Degradation: 1% in Year 1, 0.40% annually thereafter
- Certification: IEC 61215:2021, IEC 61730 / CEC Approved (valid until 21/10/2027)
- Manufacturing Origin: China
Key Features
High Efficiency Output
Delivers up to 23.83% module efficiency, enabling greater energy production per square metre and reducing total system footprint.
Advanced N-Type TOPCon Cell Technology
Utilises high-efficiency N-Type cells to improve performance, reduce light-induced degradation (LID), and ensure better stability over time.
Superior Durability in Harsh Environments
Built to withstand extreme conditions with certified 5400 Pa front load and 2400 Pa rear load. IP68 junction box and genuine MC4 EVO2 connectors offer weatherproof and secure connections.
Low Long-Term Degradation
Guaranteed performance with only 1% degradation in the first year and 0.40% per year thereafter, ensuring long-term output and return on investment.
Optimised System Integration
Monofacial single-glass design with compact, lightweight construction allows for faster installation and lower BOS (Balance of System) costs.
CEC Certification and Warranty Support
Fully certified and CEC-approved in Australia until October 2027, with long-term product and performance guarantees backed by one of the world’s most trusted solar manufacturers.
Warranty Information
Warranty Method
Contact Manufacturer
Commercial Use
25 Years
Domestic Use
25 Years
Warranty Period
25 Years
