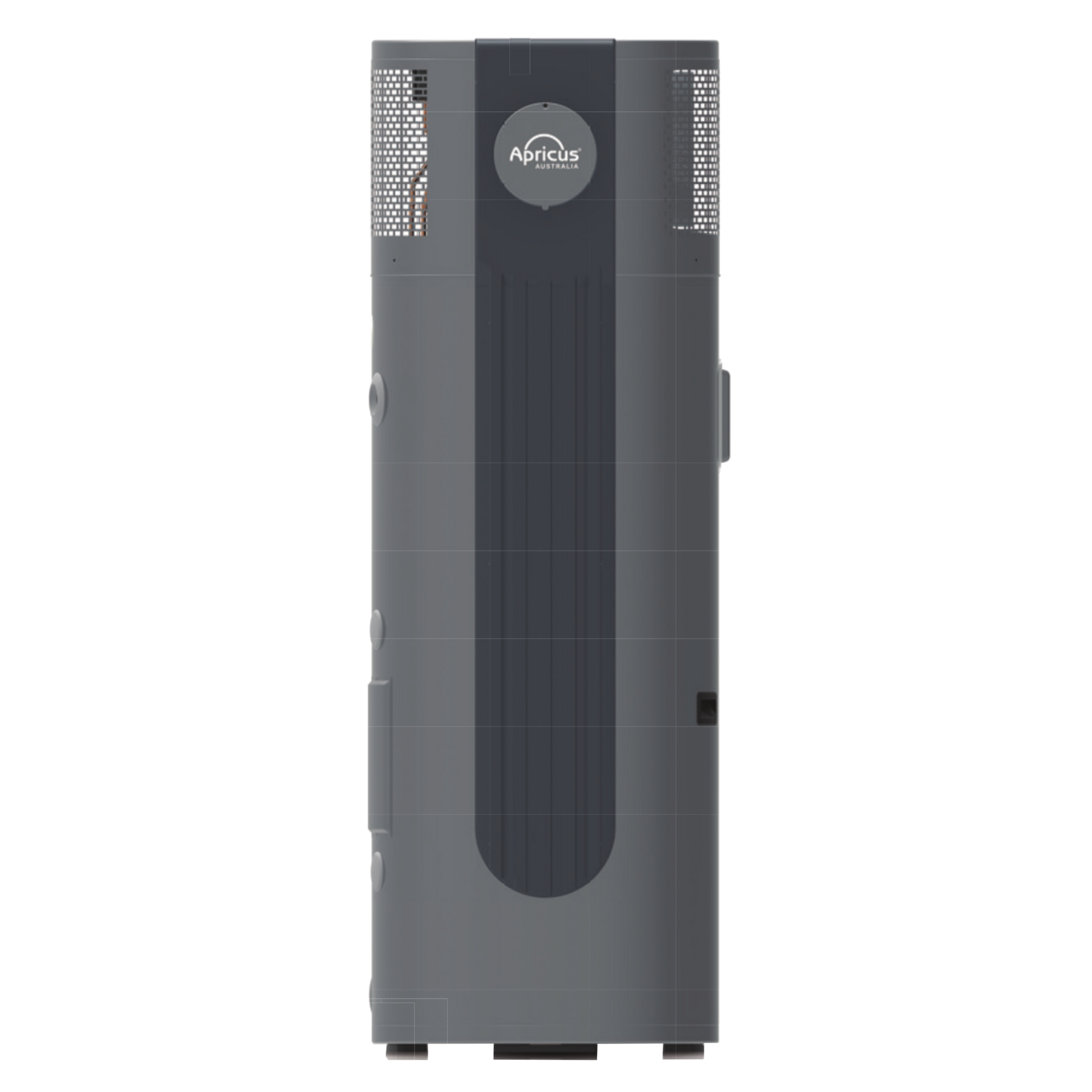

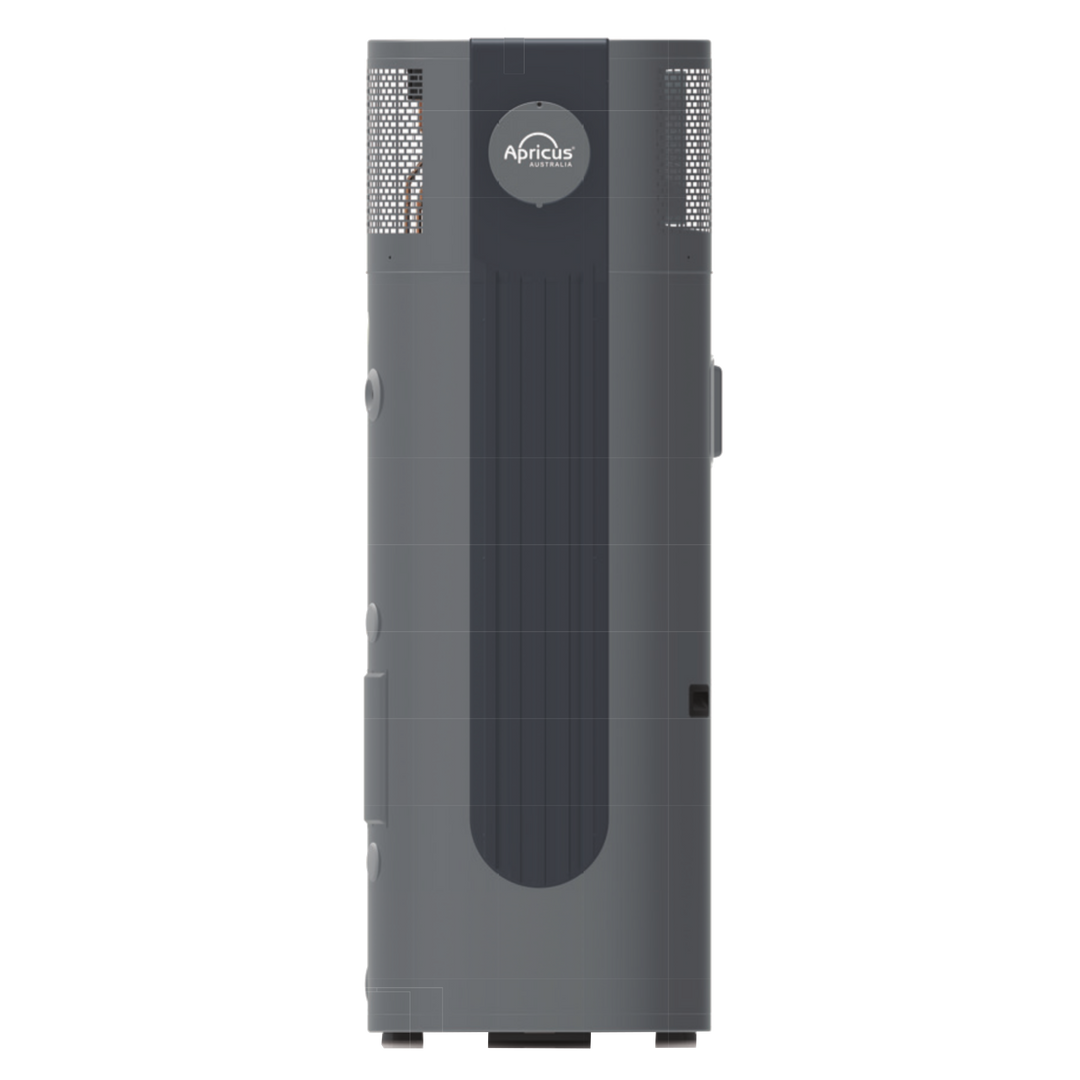

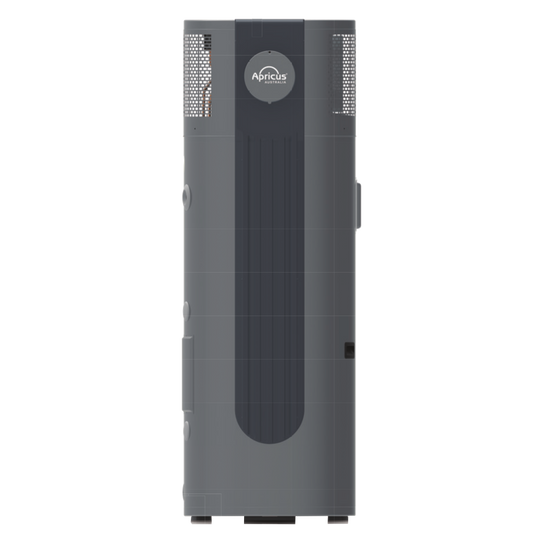

(APHP-R290-260)
Apricus All In One Heat Pump
Reduce energy costs up to 3 times compared
to conventional electric and gas water heaters
Registered Clean Energy product with annual
carbon reduction rating of 3 tonnes
Real time power usage monitoring capability means
households can now take control of their power bills
Integrate and maximise your PV with timer-controlled
heat up cycles.
Dual heating technology with incorporated
electric element to provide hot water up to 70°c
Smart touch screen controller makes optimising
the system easier than ever.
R290 natural refrigerant with near zero global
warming potential compared to synthetic
Eligible for solar and heat pump hot water heater
rebates including STCs, VEECs & ESCs.
260L
STORAGE VOLUME
6 PEOPLE
MAXIMUM CAPACITY
70%
ENERGY SAVINGS
6 YEAR
WARRANTY
70°c
MAX TEMP
Technical Specifications
| Rated Voltage | 220V – 240V |
| Rated Frequency | 50Hz |
| Heating Water Production Rate | 65L/hr |
| COP | 4.13W/W |
| Heating Capacity | 2600W |
| Maximum Input Power | 2800W |
| Maximum Input Current | 14.0A |
| Heat Pump Rated Power | 665W |
| Heat Pump Rated Current | 3.0A |
| Electric Heater Rated Power | 1800W |
| Electric Heater Rated Current | 8A |
| Refrigerant | R290 |
| Refrigerant Volume | 400g |
| Rated Water Capacity | 260L |
| Water Pipe Diameter | G3/4” |
| Waterproof Rating | IPX4 |
| Maximum Allowable Pressure | 3.0MPa |
| Maximum Working Pressure of SuctionSide | 3.0MPa |
| Maximum Working Pressure of Exhaust Side | 0.8MPa |
| Noise | 43dBa |
| Net Weight | 118kg |
| PTRV Rating | 850kPa |
| T&P Valve Power | 10kW |
| Ambient Operational Temperature | -7~+43 °c |
Operational Modes
| MODE | TEMP RANGE | MAX TEMP HEAT PUMP |
MAX TEMP ELEMENT |
|---|---|---|---|
| AUTO | 60°c | 60°c | 60°c |
| ECO | 60°c | 60°c | - |
| BOOST | 60°c-70°c | 60°c | 70°c |
| ELE | 60°c-70°c | - | 70°c |

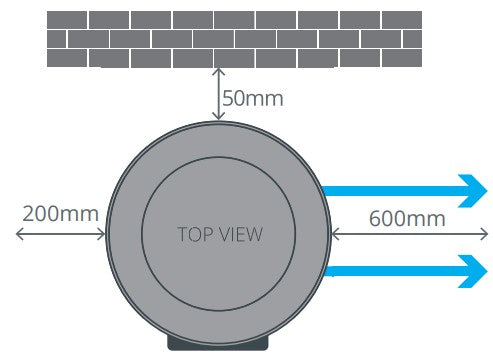

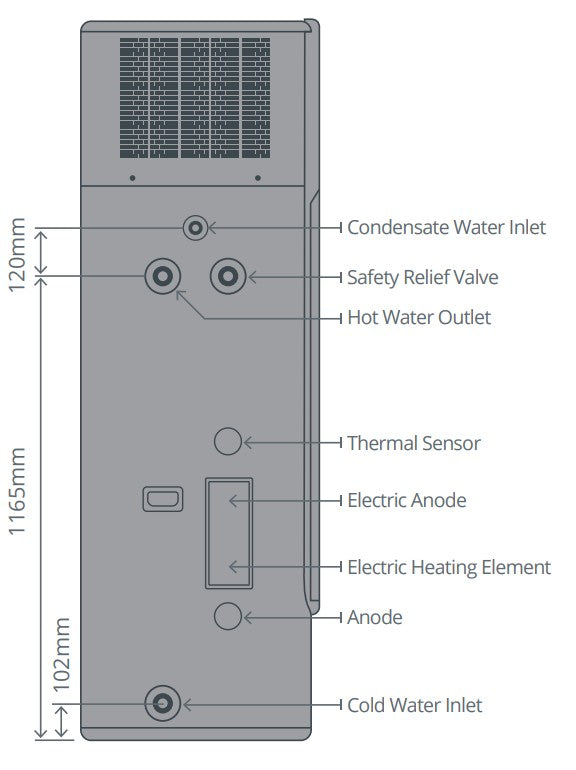

Dimensions:
