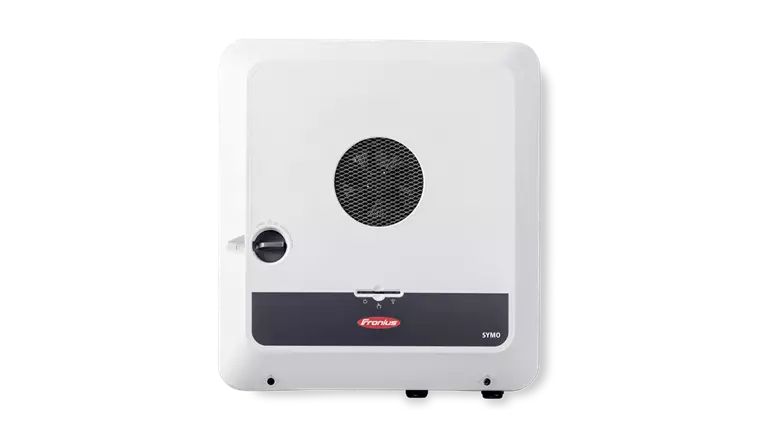

Our three-phase Fronius GEN24 inverter is the heart of private photovoltaic systems.
The Fronius GEN24 is equipped with PV Point, an integrated basic backup power function that supplies backup power to connected devices via a protected socket (as long as the sun is shining).*
The Fronius GEN24 is equipped with PV Point, an integrated basic backup power function that supplies backup power to connected devices via a protected socket (as long as the sun is shining).*
The Fronius Symo GEN24 boasts a wide range of features that support a sustainable, independent energy supply. Discover the key features for installers and their customers:
/ Intelligent energy management
/ Active cooling for a longer service life
/ Flexible and fast installation
/ Easy integration and management of Fronius or third-party components thanks to open interfaces
*The Full Backup option is not available for the Fronius Symo GEN24 3.0-5.0.
INPUT DATA
Number of MPP trackers | 2 |
---|---|
Max. input current (Idc max)
|
25 / 12,5 A |
Max. short circuit current, module array*
|
40,0 / 20,0 A |
DC input voltage range (Udc min - Udc max)
|
80-1000 V |
Feed-in start voltage (Udc start)
|
80 V |
Nominal input voltage (Udc,r)
|
610 V |
MPP voltage range (Umpp min - Umpp max)
|
224-800 V |
Usable MPP voltage range | 80-800 |
Number of DC connections | 2/1 |
Max. PV generator power (Pdc max)
|
12 kWpeak |
OUTPUT DATA
AC nominal output (Pac,r)
|
8000 W |
---|---|
Max. output power (Pac max)
|
8000 VA |
Max. grid power demand | 8000 VA |
Max. AC output current | 16,4 A |
Grid connection (Uac,r)
|
3~NPE 400/230, 3~NPE 380/220 V |
AC voltage range (Umin - Umax)
|
154 - 280 V |
Frequency (fr)
|
50 / 60 Hz |
Frequency range (fmin - fmax)
|
45-66 Hz |
Total harmonic distortion | <3% @Pnom (230/400VAC 50Hz) |
Power factor (cos φac,r)
|
0,7-1 ind,/cap, |
Back-up power | 1~NPE 220 V / 230 V |
Nom. AC output current (380VAC)
|
12,1 A |
Nom. output current (400VAC)
|
11,6 A |
GENERAL DATA
Width
|
529 mm |
---|---|
Height
|
595 mm |
Depth
|
180 mm |
Weight | 23,38 kg |
Weight incl. packaging | 28,5 kg |
Degree of protection | IP66 |
Protection class | 1 |
Overvoltage category (DC / AC) 1)
|
2 / 3 |
Night-time consumption | <10 W |
Inverter design | Transformerless |
Cooling | Regulated air cooling |
Installation | Indoor and outdoor installation |
Ambient temperature range | -25°C - +60°C |
Permitted humidity | 0 - 100% |
Max. altitude 2)
|
3000m / 4000m |
DC PV connection technology | 3x DC+ and 3x DC- push-in spring terminals 2.5 - 10 mm² |
AC connection technology | 5 pole AC push-in spring terminals 1.5 - 10 mm² 3 pole backup power push-in spring terminals 1.5mm² - 10mm² 5x PE-screw terminals 2.5 - 16 mm² |
Certificates and compliance with standards | IEC 62109, IEC 62116, IEC 61727, IEC 62909, VDE 0126, VDE AR-N4105, AS/NZS 4777.2, EN 50549, CEI 0-21, G98/G99, R254) |
Back-up power functions | PV Point |
Sound emissions | 47 dB(A) |
Interference emission class | B |
EFFICIENCY
Max. efficiency (PV - grid) | 98,2 % |
---|---|
European efficiency (ηEU) | 97,8 |
η at 5% Pac,r 3)
|
94,1 |
η at 10% Pac,r 3)
|
96,5 |
η at 20% Pac,r 3)
|
97,7 |
η at 25% Pac,r 3)
|
97,9 |
η at 30% Pac,r 3)
|
97,7 |
η at 50% Pac,r 3)
|
98,1 |
η at 75% Pac,r 3)
|
98,2 |
η at 100% Pac,r 3)
|
98,1 |
MPP adaptation efficiency | >99,9 % |
PROTECTION DEVICES
DC insulation measurement | Yes |
---|---|
Overload behaviour | Operating point shift, Power limitation |
DC disconnector | Yes |
DC Reverse polarity protection | Yes |
INTERFACES
WLAN / 2x Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
---|---|
6x digital in/out + 6x digital in | Interface to ripple control receiver, energy management |
Emergency stop (WSD) | Yes |
Datalogger and web server | Included |
2x RS485 | Modbus RTU SunSpec (third-party supplier) / Fronius Smart Meter, battery, Fronius Ohmpilot |
OUTPUT DATA PV POINT
Max continuous output power | 3000 VA |
---|---|
Nom. output current (Iac max)
|
13 A |
Grid connection | 1 ~ NPE 220 V / 230 V |
Frequency | 53 Hz / 63 Hz |
Max. switchover time PV-Point | 20 s |
Frequency in backup power mode | 53 Hz |
