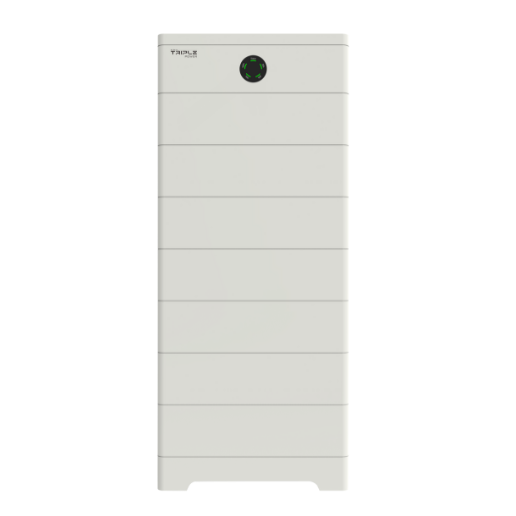

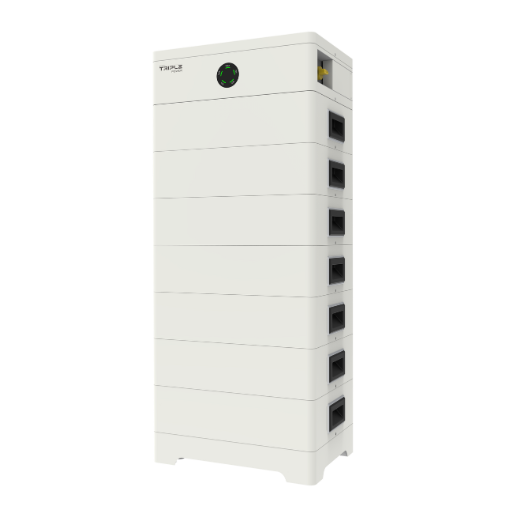

Solax T-BAT-SYS-HV-S 3.6
Solax T-BAT-SYS-HV-S 3.6

Solax T-BAT-SYS-HV-S 3.6

Regular price$7,880.00
/
Tax included.

Modules

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.


Product Advantage

This battery offers exceptional flexibility with stackable modules and a plug-and-play design for quick installation. Built with high-performance processors, the T-BAT-SYS-HV-S3.6 provides a safe, and user-friendly energy solution for evolving power needs.

Package includes:

5kw Hybrid Inverter.


Extra 3.6kwh module = $480ea

Extra inverter size:

8kw: $950

10kw: $1230

THREE PHASE:

5kw: $700

8kw: $1200

10kw: $1500

15kw: $2100




SolaX T-BAT-SYS-HV-S3.6 High-Voltage Battery System

Capacity Range: 7.37kWh – 47.92kWh

Key Features

Flexible Adaptability

  • Extendable capacity for lifetime use

  • Stackable modules with plug-and-play design

High Performance

  • Wide capacity range: 7.3 – 47.9 kWh

  • Max. 50A charging/discharging current

  • Cycle life > 6000 cycles

Assured Reliability

  • LFP battery cells with high-performance processors

  • IP65 ingress protection

  • Soft start protection against sudden surge

Smart Management

  • Remote fault diagnosis, upgrade and maintenance

  • Unique battery heating technology for low-temperature operation

  • Optional parallel connection with two-in-one cable for easy expansion and extended lifespan


Technical Specifications

Battery Modules

  • Model: TP-HS36

  • Type: LFP

  • Capacity: 3.6 kWh per module

  • Dimensions: 510 × 152 × 365 mm

  • Net Weight: 34 kg

Battery Management System (BMS)

  • Model: TBMS-MCS0800

  • Dimensions: 510 × 157 × 365 mm

  • Net Weight: 13 kg

Series Box

  • Dimensions: 510 × 157 × 365 mm

  • Net Weight: 10 kg


System Specifications

  • Rated Energy: 7.37 – 47.92 kWh

  • Usable Energy (90% DOD): 6.6 – 43.1 kWh

  • Rated Voltage: 102.4 V – 665.6 V

  • Operation Voltage Range: 90 – 750 V

  • Recommended Charge/Discharge Current: 35 A

  • Max. Charge/Discharge Current: 50 A

  • Rated Power: 3.5 – 23.3 kW

  • Max. Power: 5.1 – 33.2 kW

  • Depth of Discharge: 90%

  • Communication Interfaces: RS485, CAN

  • Dimensions (W × H × D): from 510 × 522 × 365 mm to 510 × 1484.5 × 365 mm (depending on modules)


Environmental Conditions

  • Operating Temperature (discharge): -30°C to +53°C (with heating), -20°C to +53°C (without heating)

  • Operating Temperature (charge): -30°C to +53°C (with heating), 0°C to +53°C (without heating)

  • Max. Altitude: 3000 m

  • Environment: Indoor/Outdoor (refer to installation manual)

  • Ingress Protection: IP65

  • Relative Humidity: 4 – 100% (condensing)

  • Installation: Floor mounting


Certifications

  • IEC 62619

  • IEC 60730

  • IEC 62040

  • CE

  • UN38.3
