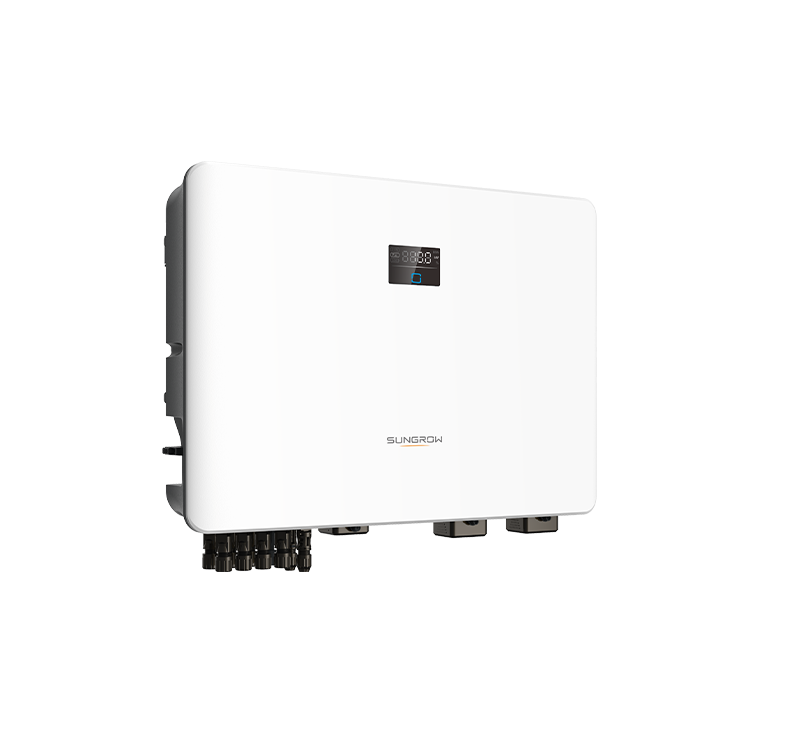

SUNGROW-HYD-SH8.0RS
-
FULL BACKUP
Built-in 63A bypass for full house backup
10ms seamless switch
Peak output up to 13680VA(10s) in backup mode
-
FLEXIBLE APPLICATION
Up to 200% PV input with 4 MPPTs
50A fast charge / discharge current
VPP Ready
-
FRIENDLY INSTALLATION
Plug & Play installation
Free online monitoring to enhance energy
management
-
SAFE AND DURABLE
Support precise AFCI IP65/C5
| Specification | Description |
|---|---|
| Type Designation | SH08RS |
| Input (DC) | |
| Recommended max. PV input power | 16000 WP |
| Max. PV input voltage | 600 V |
| Min. PV input voltage / Startup input voltage | 40 V / 50 V |
| Rated PV input voltage | 360 V |
| MPPT voltage range* | 40 V – 560 V |
| No. of independent MPP trackers | 4 |
| No. of PV strings per MPPT | 1 / 1 / 1 / 1 |
| Max. PV input current | 64 A (16 A / 16 A / 16 A / 16 A) |
| Max. DC short-circuit current | 80 A (20 A / 20 A / 20 A / 20 A) |
| Battery Data | |
| Battery type | Li-ion battery |
| Battery voltage range | 80 V – 460 V |
| Max. charge / discharge current | 50 A ** / 50 A ** |
| Max. charge / discharge power | 10000 W / 10000 W |
| Input and output (AC) | |
| Max. AC power from grid | 14500 VA*** |
| Rated AC output power | 8000 W |
| Max. AC output apparent power | 8000 VA |
| Max. AC output current | 36.4 A |
| Rated AC voltage | 1 / N / PE, 220 V / 230 V / 240V |
| AC voltage range | 154 V – 276 V |
| Rated grid frequency | 50 Hz / 60 Hz |
| Grid frequency range | 45Hz - 55 Hz / 55 Hz - 65 Hz |
| Harmonic (THD) | < 3% (of rated power) |
| Power factor at rated power / Adjustable power factor | > 0.99 / 0.8 leading - 0.8 lagging |
| Feed-in phases / Connection phases | 1 / 1 |
| Backup data (on grid mode) | |
| Max. output power for backup load | 14500 W*** |
| Max. output current for backup load | 63 A |
| Backup data (off-grid mode) | |
| Rated voltage | 1 / N / PE, 220 V / 230 V / 240 V (±2%) |
| Rated frequency | 50 Hz / 60 Hz (±0.2%) |
| THDV(@Linear load) | < 2% |
| Backup switch time | < 10 ms |
| Rated output power | 8000W / 8000VA |
| Peak output power | 13680 VA, 10 s |
| Efficiency | |
| Max. efficiency | 97.4% |
| European efficiency | 96.8% |
| Protection & Function | |
| Grid monitoring | Yes |
| DC reverse polarity protection | Yes |
| AC short-circuit protection | Yes |
| Leakage current protection | Yes |
| DC switch (solar) | Yes |
| Surge Protection | DC Type II / AC Type II |
| PID Zero | Yes |
| Battery input reverse polarity protection | Yes |
| General data | |
| Topology (solar / battery) | Transformerless / Transformerless |
| Degree of protection | IP65 |
| Dimensions (W * H * D) | 605 mm * 435 mm * 181 mm |
| Weight | 29 kg |
| Mounting method | Wall-mounting bracket |
| Operating ambient temperature range | -25 ℃ to 60 ℃ |
| Allowable relative humidity range (Non-condensing) | 0% - 100% |
| Cooling method | Natural convection |
| Max. operating altitude | 4000 m |
| Noise (Typical) | 35 dB (A) |
| Display | LED digital display and LED indicator |
| Communication | RS485, WLAN, Ethernet, CAN |
| DI / DO | DI * 4 / DO * 2 / DRM0 |
| DC connection type | MC4 (PV, Max.6mm²) / Plug and play connector (battery, Max.10mm²) |
| AC connection type | Plug and play connector (Max.16mm²) |
| Compliance | IEC 62109-1, IEC 62109-2, IEC 62477-1, IEC61000-6-1/-2/-3/-4, IEC62920, EN55011, CISPR 11, AS/NZS 4777.2:2020, NRS 097 |
| Country of manufacture | China |
