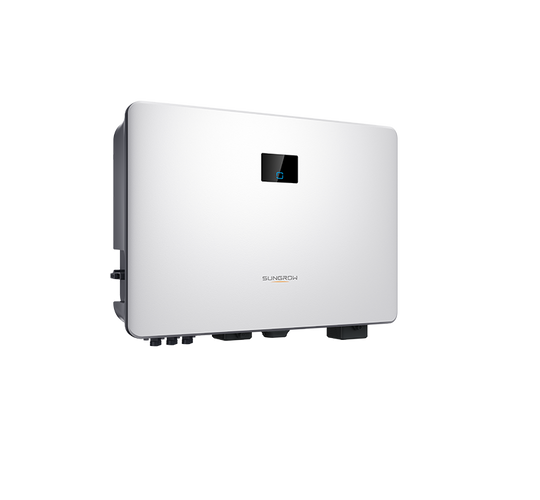

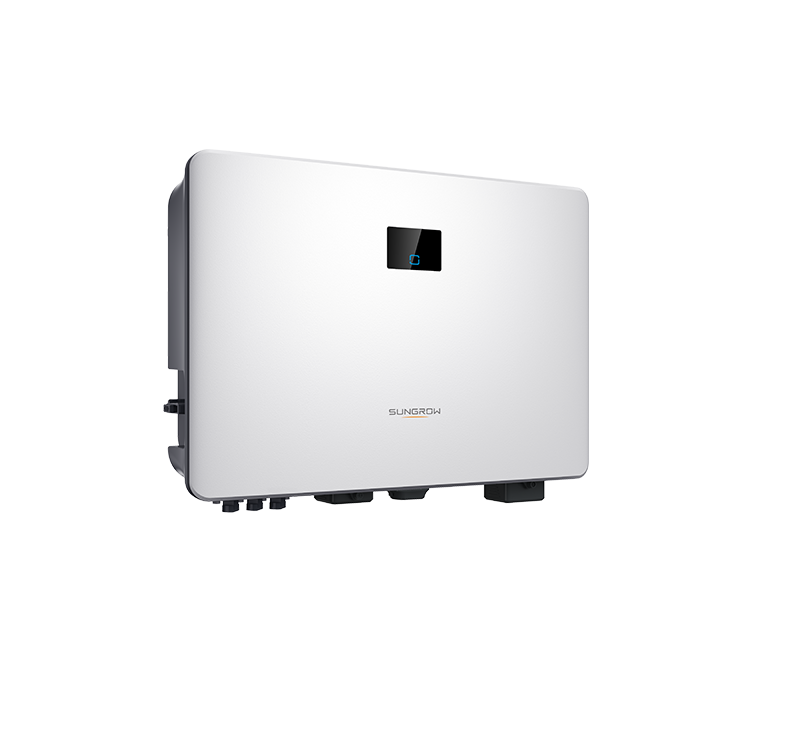

SUNGROW-SG10.0RS-ADA-FULL-PACK

  • HIGH YIELD

    Compatible with high power PV modules and bifacial modules

    Lower startup & wider MPPT voltage range

    Built-in smart PID recovery function

  • SAFE AND RELIABLE

    Integrated arc fault circuit interrupter

    Built-in Type II DC&AC SPD

    Corrosion protection rating at C5

  • USER FRIENDLY STEUP

    Plug and play installation

    One-click access to iSolarCloud monitoring platform

    Light and compact with optimized heat dissipation design

  • SMART MANAGEMENT

    Real time data (10 seconds refresh sample)

    24/7 live monitoring both online and with integrated display

    Online IV curve scan and diagnosis


  • TECH SPECS

Type designation SG5.0RS-ADA
Input (DC)
Recommended max. PV input power 15 kWp
Max. PV input voltage 600 V
Min. PV input voltage / Startup input voltage 40 V / 50 V
Rated PV input voltage 360 V
MPP voltage range 40-560 V
No. of independent MPP inputs 3
No. of PV strings per MPPT 1
Max. PV input current 48 A (16 A / 16 A / 16 A)
Max. DC short-circuit current 60 A (20 A / 20 A / 20 A)
Max. current for DC connector 30A
Output (AC)
Rated AC output power 9999 W
Max. AC output apparent power 9999 VA
Rated AC output apparent power 9999 VA
Max. AC output current 43.5 A
Rated AC output current (at 230V) 43.5 A
Rated AC voltage 220 / 230 / 240V
AC voltage range 154 - 276 V
Rated grid frequency 50 Hz / 60 Hz
Grid frequency range 45 - 55 Hz / 55 - 65 Hz
Harmonic (THD) < 3 % (at rated power)
Power factor at Rated power / Adjustable power factor > 0.99 / 0.8 leading - 0.8 lagging
Feed-in phases / Connection phases 1 / 1
Efficiency
Max. efficiency 97.8 % / 97.4 %
Protection
Grid monitoring Yes
DC reverse polarity protection Yes
AC short-circuit protection Yes
Leakage current protection Yes
Surge Protection DC type II / AC type II
Ground fault monitoring Yes
DC switch Yes
PV string current monitoring Yes
Arc fault circuit interrupter (AFCI) Yes
PID recovery function Yes
DC terminal protective cover Yes
General Data
Dimensions (WHD) 490 * 340 * 170 mm
Weight 19 kg
Mounting method Wall-mounting bracket
Topology Transformerless
Degree of protection IP65
Corrosion C5
Operating ambient temperature range -25 to 60 ℃
Allowable relative humidity range (non-condensing) 0 - 100 %
Cooling method Natural cooling
Max. operating altitude 4000 m
Display LED digital display & LED indicator
Communication Ethernet / WLAN / RS485 / DI (Ripple control & DRM)
DC connection type MC4 (Max. 6 mm² )
AC connection type Plug and play connector (Max. 16 mm² )
Grid compliance IEC 62109-1/2, AS/NZS 4777.2:2020
Grid Support Active & reactive power control and power ramp rate control
Country of manufacture China
