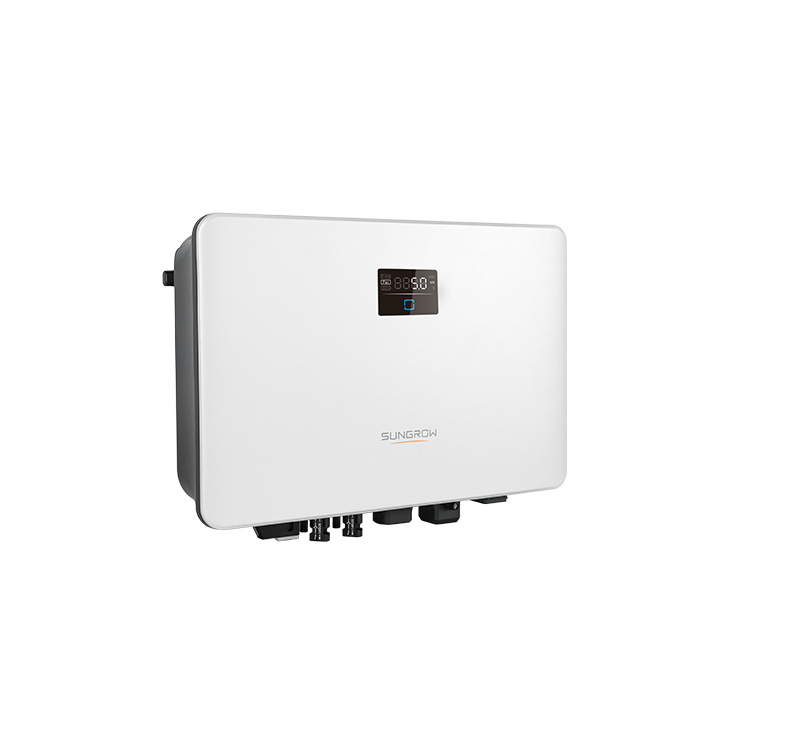

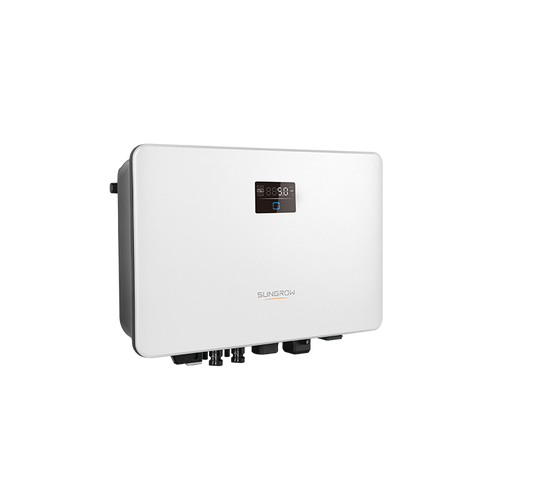

SUNGROW-SG5.0RS
Type designation | SG5.0RS |
---|---|
Input (DC) | |
Recommended max. PV input power | 7.5 kWp |
Max. PV input voltage | 600 V |
Min. operating PV voltage / Start-up input voltage | 40 V / 50 V |
Rated PV input voltage | 360 V |
MPP voltage range | 40 – 560 V |
No. of independent MPP inputs | 2 |
Default No. of PV strings per MPPT | 1 |
Max. PV input current | 32 A (16 A / 16 A) |
Max. DC short-circuit current | 40 A (20 A / 20 A) |
Output (AC) | |
Rated AC output power | 4999 W |
Max. AC Output power | 4999 VA |
Rated AC output apparent power | 4999 VA |
Rated AC output current (at 230V) | 21.7 A |
Max. AC output current | 21.7 A |
Rated AC voltage | 220 / 230 / 240V |
AC voltage range | 154 – 276 V |
Rated grid frequency / Grid frequency range | 50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz |
Harmonic (THD) | < 3 % (at rated power) |
Power factor at rated power / Adjustable power factor | > 0.99 / 0.8 leading – 0.8 lagging |
Feed-in phases / Connection phases | 1 / 1 |
Efficiency | |
Max. efficiency | 97.9 % |
European efficiency | 97.3 % |
Protection | |
Grid monitoring | Yes |
DC reverse polarity protection | Yes |
AC short-circuit protection | Yes |
Leakage current protection | Yes |
Surge Protection | DC type II / AC type II |
DC switch | Yes |
PV string current monitoring | Yes |
Arc fault circuit interrupter (AFCI) | Yes |
PID recovery function | Yes |
General Data | |
Dimensions (WHD) | 410 * 270 * 150mm |
Weight | 10 kg |
Mounting method | Wall-mounting bracket |
Topology | Transformerless |
Degree of protection | IP65 |
Operating ambient temperature range | -25 to 60 ℃ |
Allowable relative humidity range (non-condensing) | 0 – 100 % |
Cooling method | Natural cooling |
Max. operating altitude | 4000 m |
Display | LED digital display & LED indicator |
Communication | Ethernet/WLAN/RS485/DI (Ripple control & DRM) |
DC connection type | MC4 (Max. 6 mm² ) |
AC connection type | Plug and play connector (Max. 6 mm² ) |
Grid compliance | IEC / EN62109-1/2, IEC / EN62116, IEC / EN61727, IEC / EN61000-6-2/3, EN50549-1, AS4777.2:2020, ABNT NBR 16149, ABNT NBR 16150, UNE 217002:2020, NTS V2 TypeA, CEI 0-21:2020, VDE0126-1-1/A1(VFR-2019), UTE C15-712, C10/11, G98/G99 |
Grid Support | Active & reactive power control and power ramp rate control |
Country of manufacture | China |
